Sistema automático de control de sensor de encendido y apagado de alumbrado público

The  Street Light CCT Sensor aims at the using environment of street lighting, tunnels etc., through the abnormal changing ambient, the lighting fixtures are automatically controlled according to programming to realize intelligent lighting management. Traditional street lightings,  tunnels, factories lighting fixtures are mostly controlled by personnel inspection or regular control, which initially meets the needs of the scene, but still cannot achieve the effect of intelligent control. For example: Turn on or dimming to brighter when people is coming, and turn lights off when people go away; No matter which direction the person enters from, the lamps in the area will automatically light up or increase according to the setting; this equipment cooperates with the intelligent lamps to solve these problemsperfectly. It adopts the most advanced and popular LoRa wireless communication technology, the communication distance can reach 3 kilometers without repeater, and the actual measurement reach 1 kilometers, and the communication distance is adjustable.

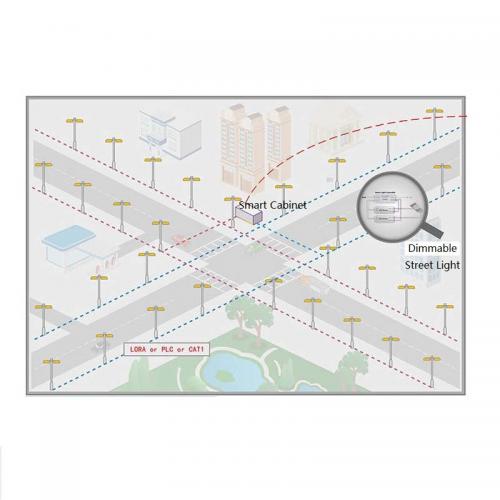

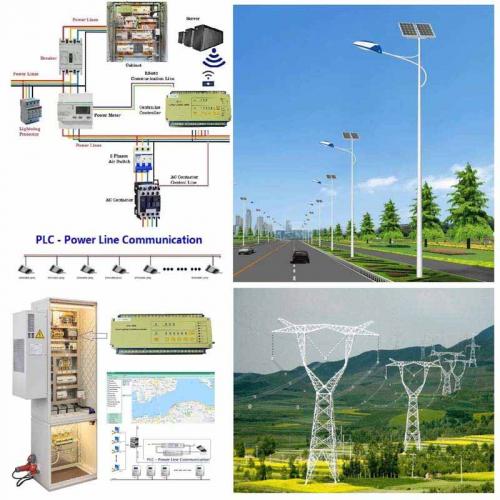

Centralized Controller is widely used in the Smart City Street Lighting Projects, Super-highway’s Lighting, Tunnel Lighting and the Industrial Lighting such as big scale factory and warehouse High Bay & Low Bay Lighting System, control lighting fixtures through the man-machine interface, data acquisition and lamps Monitoring.

El controlador centralizado se usa ampliamente en proyectos de alumbrado público de ciudades inteligentes,, túneles de autopistas y el sistema de iluminación industrial iot 4.0, como el sistema de iluminación de bahía alta,, mástil alto,, etc.,, gestiona los accesorios de iluminación a través de la interfaz hombre-máquina, adquisición de datos y monitoreo de lámparas, mediante un centro de datos basado en la nube adaptado para usuarios.

According to the real time traffic flow rate conditions, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the roadway lights according to the changing of city roads brightness, to achieve the purpose of intelligent public lighting management.

Supervise el subsistema en todo momento Detecte la red, y el bucle único y la lámpara única para realizar un análisis del estado de la red y un análisis de la calidad de la red de CA normal/anormal, ENCENDIDO/APAGADO, Estado de atenuación y datos de consumo de energía. y potencia tasa de ahorro; además, el subsistema de análisis experto admitirá la advertencia de vida útil de iluminación, y las sugerencias de compensación de atenuación de luz, y la extensión de vida, para intercambiar datos para la gestión de activos en la interfaz hombre-máquina.

Key Features: Hybrid AC & Solar Power or Pure Solar Power 4G Sim Card CAT 1 Communication Technology (Hybrid PLC / LoRa  /LoRaMesh) Auto-change Solar to AC by Smart Detect Sensor within 3 seconds Cloud based IoT Lighting Controlling & Monitoring Real Time Data: Watts / Voltage / Current / Power Factor can be Remote Reading Power Consumption / Faulty Reporting Using high efficiency 5050 leds,more than 200lm/w. Adopting high efficiency monocrystalline silicon solar panel, conversion rate is more than 21%. Grade A LiFePo4 battery,capacity is more than 80% after 2000 cycles. PWM and MPPT solar charger Horizontal or vertical pole installation,mounted angle is adjustable

nuestros productos estrella son la lámpara LED de instalación no tripulada, segura y fácil de instalar en el suelo, sin necesidad de escalera. a la lámpara tradicional, tenemos que llamar al electricista para instalar la lámpara con mucho costo, el electricista tiene que usar la escalera o plataforma aérea de trabajo, el costo de mantenimiento es mucho, el riesgo es alto. especialmente en naves de varios pisos, la escalera no es lo suficientemente larga, la plataforma de trabajo aérea es difícil de cargar en los pisos. de acuerdo con estos asuntos y nuestro nuevo tipo de lámpara, investigamos las diferentes barras de instalación no tripuladas. la barra de movimiento manual funciona para techos de altura común, barra semiautomática para techos de altura media, barra completamente automática para techo superalto. ¡así que ahora el mantenimiento se vuelve muy seguro,fácil y oportuno. y el costo y el riesgo son muy bajos!

Key Features n Applicable to signal control systems, traffic information service systems, road traffic monitoring and other application scenarios. n High precision millimeter wave radar with 4 million low illumination camera. n Max. 8 lanes of multi-target motor vehicles detection, longitudinal distance of 100m. n High spatial resolution and strong penetration ability, support working in all-weather environment, not affected by rain, fog, strong wind, dust, light, etc. n Built-in deep learning algorithm, support intelligent recognition function, support license plate recognition and target fully structured. n Supports detection of multiple targets’ position, lane, speed, direction and other info. n It supports lane statistics, traffic flow, speed, status, queue, time distance, spacing, Qty.of parking areas, avg.delay, space occupancy and time occupancy data, and supports statistical upload from 1 to 3600 seconds. n Supports traffic evaluation data output, including congestion, queue length, etc. n Each lane supports 2 virtual coils to output vehicle entry and exit signals, the virtual coil positions are configurable. n Fog penetration, strong light suppression, wide dynamic range, and has multiple white balance modes to suit various scene requirements. n Support Network & RS-485 data upload. Parameters Millimeter Wave Radar Target Type People / Motor Vehicles / Non-Motor Vehicles Max. Qty. of Detection 128 Working Frequency 80 ~ 81GHz Transmit power 12dBm(RFout)+18dB(ANTgain) Speed Detect Range -250 km/h ~ 250 km/h Detection Mode Doppler moving target detection, slow moving target detection, fast moving target detection Sweep bandwidth 136.5 MHz Modulation Waveform FMCW Max. Detection Distance 150m@0° ;    50m@士45° Horizontal angle measurement range 士45° Horizontal lobe 90° for MRR, 22° for  LRR Vertical Lobe 13°(-6dB) Refresh rate 12.5Hz Install Height 1~ 6m   Interface Serial Port 1 of RS-485 Port Snapshot Function Image Format JPEG Image resolution 2688 × 1520 Smart Functions Intelligent recognition Bayonet capture, license plate recognition, vehicle model recognition, vehicle body color recognition, brand, sub-brand. Exterior Interface Ethernet 2pcs RJ45 100 M / 1000 M Adaptive Ethernet port  Warning 1 Relay switch Function Features Min.illumination Colorful: 0.01 Lux @ (F1.2，AGC ON) Black & White: 0.001 Lux @ (F1.2，AGC ON) shutter 1/25s ~ 1/100,000s Video compression standards H.264, H.265, MJPEG Compression output bit rate 32 Kbps ~ 16 Mbps Video resolution 2688 × 1520 Frame rate 25 fps (2688 × 1520) Image Settings Saturation, brightness, contrast, white balance, gain adjustable through software Storage function TF General functions Heartbeat, password protection, NTP time synchronization Video format PAL General Specifications Dimmensions 226 mm (W) x 375.3 mm (H) x 206.4 mm (D) Working Temperature -30 °C ~ +70 °C Working Humidity 5% ~ 95% @ 40 °C，No condensation Working Voltage DC 24 V ± 10% Power Consumption 25 W Max. N.W. 3 kg ICR Type Infrared IP Rating IP67 Focal Length 12 mm Resolution 2688 × 1520 White Balance Automatic white balance Wide dynamic range Support Max. Energy Optimization achieving by the Smart Traffic Radar  and Video all-in-one Detecting Machine
