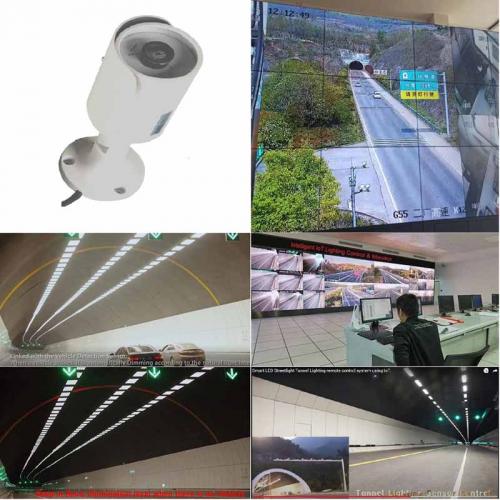

sensor de movimiento del vehículo para el sistema inteligente de control de alumbrado público

de acuerdo con el entorno de carretera/túnel,, coopera con el controlador centralizado de iluminación inteligente para controlar automáticamente la iluminación de las lámparas de acuerdo con el cambio de brillo ambiental, para lograr el propósito de gestión y control inteligente.

According to the real time traffic flow rate conditions, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the roadway lights according to the changing of city roads brightness, to achieve the purpose of intelligent public lighting management.

Key Features n Applicable to signal control systems, traffic information service systems, road traffic monitoring and other application scenarios. n High precision millimeter wave radar with 4 million low illumination camera. n Max. 8 lanes of multi-target motor vehicles detection, longitudinal distance of 100m. n High spatial resolution and strong penetration ability, support working in all-weather environment, not affected by rain, fog, strong wind, dust, light, etc. n Built-in deep learning algorithm, support intelligent recognition function, support license plate recognition and target fully structured. n Supports detection of multiple targets’ position, lane, speed, direction and other info. n It supports lane statistics, traffic flow, speed, status, queue, time distance, spacing, Qty.of parking areas, avg.delay, space occupancy and time occupancy data, and supports statistical upload from 1 to 3600 seconds. n Supports traffic evaluation data output, including congestion, queue length, etc. n Each lane supports 2 virtual coils to output vehicle entry and exit signals, the virtual coil positions are configurable. n Fog penetration, strong light suppression, wide dynamic range, and has multiple white balance modes to suit various scene requirements. n Support Network & RS-485 data upload. Parameters Millimeter Wave Radar Target Type People / Motor Vehicles / Non-Motor Vehicles Max. Qty. of Detection 128 Working Frequency 80 ~ 81GHz Transmit power 12dBm(RFout)+18dB(ANTgain) Speed Detect Range -250 km/h ~ 250 km/h Detection Mode Doppler moving target detection, slow moving target detection, fast moving target detection Sweep bandwidth 136.5 MHz Modulation Waveform FMCW Max. Detection Distance 150m@0° ;    50m@士45° Horizontal angle measurement range 士45° Horizontal lobe 90° for MRR, 22° for  LRR Vertical Lobe 13°(-6dB) Refresh rate 12.5Hz Install Height 1~ 6m   Interface Serial Port 1 of RS-485 Port Snapshot Function Image Format JPEG Image resolution 2688 × 1520 Smart Functions Intelligent recognition Bayonet capture, license plate recognition, vehicle model recognition, vehicle body color recognition, brand, sub-brand. Exterior Interface Ethernet 2pcs RJ45 100 M / 1000 M Adaptive Ethernet port  Warning 1 Relay switch Function Features Min.illumination Colorful: 0.01 Lux @ (F1.2，AGC ON) Black & White: 0.001 Lux @ (F1.2，AGC ON) shutter 1/25s ~ 1/100,000s Video compression standards H.264, H.265, MJPEG Compression output bit rate 32 Kbps ~ 16 Mbps Video resolution 2688 × 1520 Frame rate 25 fps (2688 × 1520) Image Settings Saturation, brightness, contrast, white balance, gain adjustable through software Storage function TF General functions Heartbeat, password protection, NTP time synchronization Video format PAL General Specifications Dimmensions 226 mm (W) x 375.3 mm (H) x 206.4 mm (D) Working Temperature -30 °C ~ +70 °C Working Humidity 5% ~ 95% @ 40 °C，No condensation Working Voltage DC 24 V ± 10% Power Consumption 25 W Max. N.W. 3 kg ICR Type Infrared IP Rating IP67 Focal Length 12 mm Resolution 2688 × 1520 White Balance Automatic white balance Wide dynamic range Support Max. Energy Optimization achieving by the Smart Traffic Radar  and Video all-in-one Detecting Machine

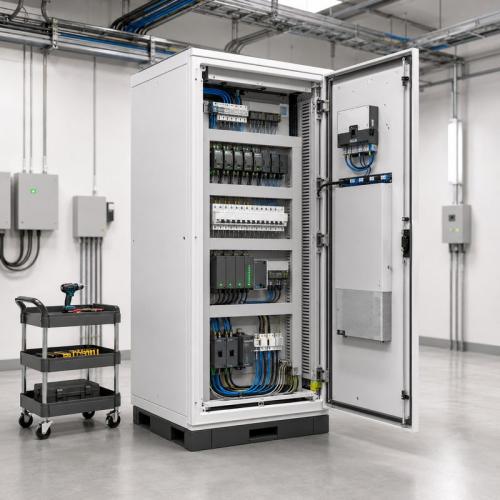

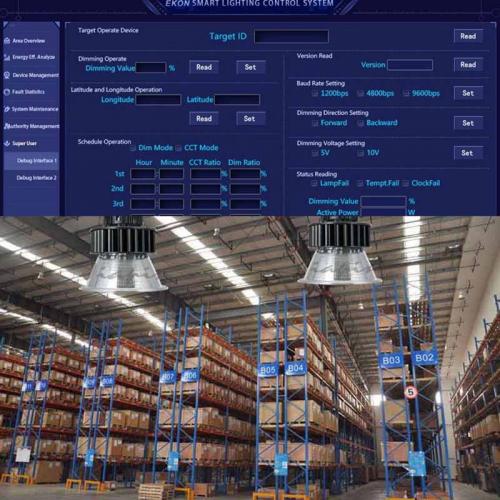

Centralized Controller is widely used in the Smart City Street Lighting Projects, Super-highway’s Lighting, Tunnel Lighting and the Industrial Lighting such as big scale factory and warehouse High Bay & Low Bay Lighting System, control lighting fixtures through the man-machine interface, data acquisition and lamps Monitoring.

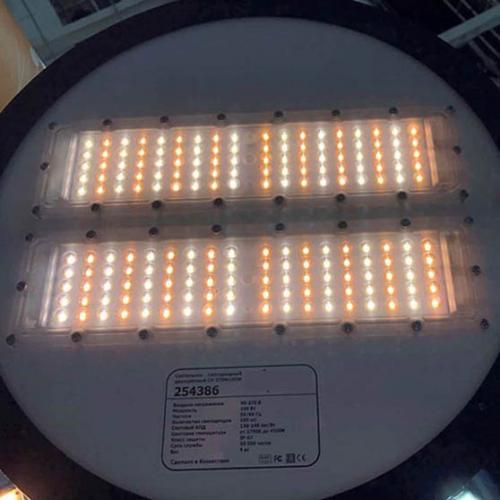

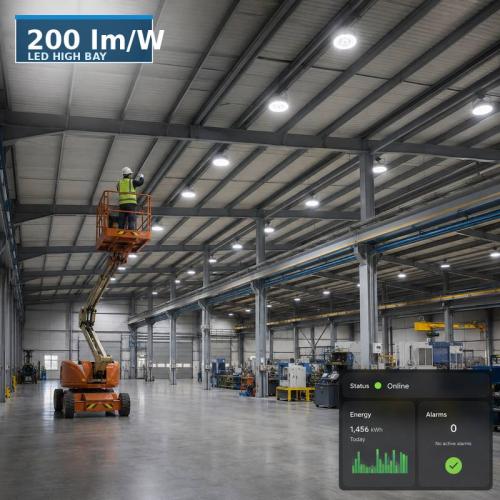

200 lm/W High Performance  Industry Light: A significant amount of less energy is used with 200 lm/W efficiency – 25% more efficient than standard LED industry light (150 lm/W). By using cut-edge technology, our High Performance, range at the top of the game when it comes to efficacy - up to 200 lumens per watt, and minimum 25% power saving than nowdays polular design of 150 lm/W model. It’s better than buying a cheap industry light with lower luminous efficacy and paying a lot more for electricity over the next 5~10 years. Slash Your Energy Bill and Reduce Carbon Emissions. How much can you save with High Performance+ industry Light? Assuming you need 15,000 lumens, you'll only need 75 watts with our highly efficient industry light vs 200W with a standard LED high bay light. That's nearly 25% electricty savings. High quality industry light will last for years and you need to consider the overall cost as well as the impact on the environment to select the right option. By choosing High Performance, your investment will quickly break even, and the energy saved will help reduce carbon emissions. Moreover, with this guarantees a comfortable light which is ideal in places like warehouse, huge plant, logistic center, office buildings, hospitals, dental practices, schools, universities and shopping mall. Our High Performance+  high way come with a 5-year warranty and are guaranteed no-yellowing to give you peace of mind.

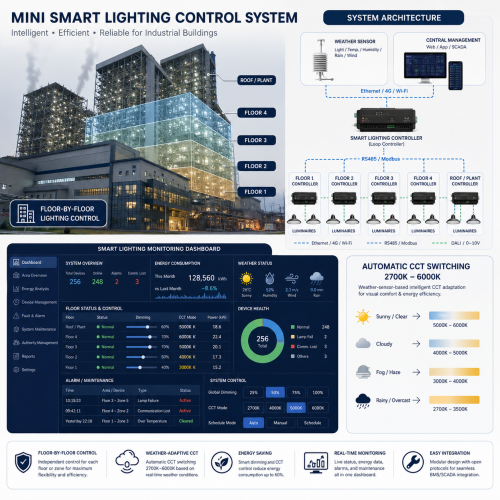

el modo de control digital del sistema de control de iluminación de la industria inteligente es cada vez más popular en el sistema de gestión de iluminación de la industria iot , adoptando la solución de vanguardia , atenuación precisa del brillo de la iluminación al 100% de inmediato para detectar el presencia de cuerpos humanos, no solo según los, sensores de detección de intensidad de la luz del día, sensores infrarrojos, sensores de movimiento para detectar cinta transportadora móvil y montacargas,, pero también manejar la emergencia mediante interfaz local: botones en el dispositivo o pantalla táctil industrial, dispositivos portátiles, e interruptores de panel de revisión para planificación de seguridad.

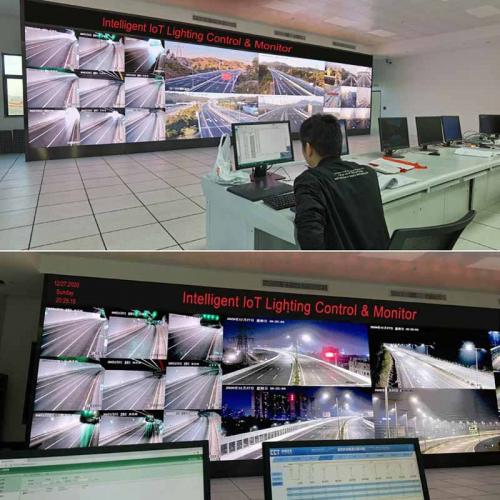

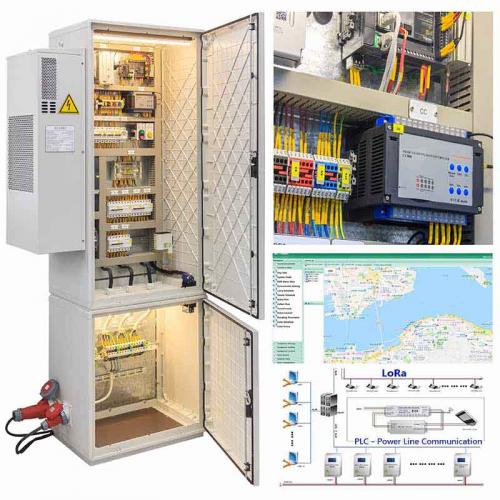

El controlador centralizado se usa ampliamente en proyectos de alumbrado público de ciudades inteligentes,, túneles de autopistas y el sistema de iluminación industrial iot 4.0, como el sistema de iluminación de bahía alta,, mástil alto,, etc.,, gestiona los accesorios de iluminación a través de la interfaz hombre-máquina, adquisición de datos y monitoreo de lámparas, mediante un centro de datos basado en la nube adaptado para usuarios.

El controlador centralizado es ampliamente utilizado en proyectos de alumbrado público de ciudades inteligentes ,, iluminación de superautopistas ,, iluminación de túneles e iluminación industrial, como fábricas y almacenes a gran escala, sistema de iluminación de bahía alta y bahía baja ,, accesorios de iluminación de control a través del interfaz hombre-máquina, adquisición de datos y monitoreo de lámparas.
